• 2 12V DC Power Outlets
• 2 Speakers
• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Analog Appearance
• Driver And Front Passenger Armrests
• Driver And Passenger Door Bins and 1st Row Underseat Storage
• Driver Information Center
• Dual High Back Buckets
• Fixed Antenna
• Fixed Front Head Restraints
• Front Black Vinyl Floor Covering
• Front Cupholder
• Front Vinyl Headliner
• Glove Box
• Manual 1st Row Windows
• Manual Air Conditioning
• Manual Tilt/Telescoping Steering Column
• Partial Floor Console w/Storage and 2 12V DC Power Outlets
• Radio w/Clock
• Radio: AM/FM Stereo w/Clock Display & 2 Speakers -inc: Bluetooth® capability and USB input
• Tracker System
• Urethane Gear Shifter Material
• Urethane Gear Shifter Material
• Vinyl Bucket Seats
• Wireless Phone Connectivity

• 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs and Hill Hold Control
• 4.10 Axle Ratio
• 40-Gallon Fuel Tank
• 50 State Emission System
• 5100# Maximum Payload
• 78-Amp/Hr 750CCA Maintenance-Free Battery
• Front Anti-Roll Bar
• Front Suspension w/Coil Springs
• GVWR: 10,050 lb Payload Package
• HD 210 Amp Alternator
• HD Gas-Pressurized Shock Absorbers
• Hydraulic Power-Assist Steering
• Rear-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs

• ABS And Driveline Traction Control
• Collision Mitigation-Front
• Dual Stage Driver And Passenger Front Airbags
• Electronic Stability Control (ESC)
• Low Tire Pressure Warning
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners
• Side Impact Beams

780A

High-Series Exterior Upgrade Package

• OXFORD WHITE
• ENGINE: 7.3L V8 PORT FUEL INJECTED GASOLINE (STD)
• CRUISE CONTROL
• TRANSMISSION: 6-SPEED O/D W/TOW HAUL -inc: auxiliary cooler (STD)
• HIGH SERIES EXTERIOR UPGRADE PACKAGE -inc: Front Chrome Bumper Chrome Grille
• MANUAL TELESCOPING TRAILER TOW MIRRORS (54E) -inc: power-adjust flat lens
• POWER EQUIPMENT GROUP -inc: 1-touch down power driver window 110V Power Inverter Remote Keyless Entry SecuriLock Passive Anti-Theft System (ePATS)
• 4.10 AXLE RATIO W/LIMITED-SLIP
• ORDER CODE 780A
• EMBEDDED MODEM DELETE
• 16" SPORT WHEEL COVERS
• B-PILLAR TRIM KIT -inc: unique full LH/RH B-pillar trim shipped in dunnage box May require trimming depending upon back-panel or upfit installed
• REAR VIEW CAMERA KIT -inc: camera and large rear view video display that utilizes most of the mirror area
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• MP3 Capability
• Bluetooth® Connection
• Bucket Seats
• Adjustable Steering Wheel
• A/C
• Vinyl Seats
• Bucket Seats
• Traction Control
• Stability Control
• Traction Control
• Front Collision Mitigation
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag

• Brakes
• Brake ABS System (Second Line): 4-Wheel
• Brake ABS System: 4-Wheel
• Brake Type: 4-Wheel Disc
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.6
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 210
• Exterior Dimensions
• Cab to Axle (in): 80
• Cab to End of Frame (in): 148.5
• Ground to Top of Load Floor (in): 25.9
• Height, Overall (in): 80.4
• Length, Overall (in): 241.1
• Overhang, Rear w/o bumper (in): 68.5
• Wheelbase (in): 138
• Width, Max w/o mirrors (in): 79.4
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Interior Dimensions
• Front Head Room (in): 42
• Front Hip Room (in): 65.6
• Front Leg Room (in): 42.1
• Front Shoulder Room (in): 68.1
• Passenger Capacity: 2
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 48.6
• Summary
• Body Code: H
• Body Style: Chassis

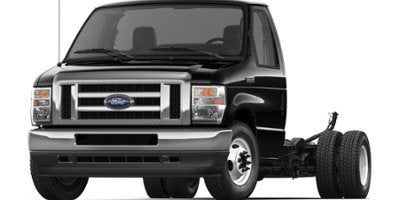

• Vehicle Name: Ford E-Series Cutaway
• Suspension
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 7800
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Spring Capacity - Front (lbs): 4200
• Spring Capacity - Rear (lbs): 6084
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Tires
• Front Tire Capacity (lbs): 4600
• Front Tire Order Code: T38
• Front Tire Size: LT245/75SR16
• Rear Tire Capacity (lbs): 6084
• Rear Tire Order Code: T38
• Rear Tire Size: LT245/75SR16
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 8450
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 845
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8450
• Weight Information
• Base Curb Weight (lbs): 4907
• Curb Weight - Front (lbs): 2940
• Curb Weight - Rear (lbs): 1967
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 6084
• Gross Combined Wt Rating (lbs): 18500
• Gross Vehicle Weight Rating Cap (lbs): 10050
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 X 7
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 X 7
